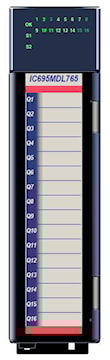

EMERSON IC695MDL765 Digital Output Module 50 mA Inputs 16 Digital, Relay Outputs 24/125 VDC, 105 - 132 VDC, 24 - 125 VDC,

The 24/125 volt DC 2A Smart Digital Output module, IC695MDL765, provides 16 discrete outputs in two isolated groups of 8 outputs. Each group of 8 outputs is referenced to an isolated common, providing group-to-group isolation. The module uses 24 VDC or 125 VDC. The outputs are positive logic or sourcing-type outputs; they switch the loads on the positive side of the power supply, and supply current to the load. The outputs can switch user loads over the ranges of +18 V to +30 VDC or 105 V to 132 VDC and can source a maximum current of 2 Amps per point. Power for the loads must be provided by the user. Each point has electronic short circuit protection (ESCP) that shuts down an output and generates an individual fault if capacitive or incandescent surge current exceeds 10 amps, or if it exceeds 2 amps for more than 10 ms. In addition to output driver faults being sent back to the RX3i controller, the module provides a loss of field side power fault, ESCP point failure within a grou p and field terminal block ON/OFF status.
