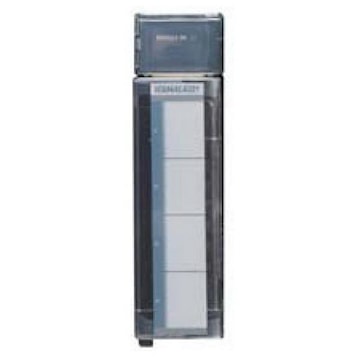

EMERSON IC694ALG233 RX3I EFF. 16CH ADVANALOG CURRENT IN MODULE
emric694alg233
EMERSON IC694ALG233 RX3I EFF. 16CH ADVANALOG CURRENT IN MODULE
Inventory
Available for backorder
Unavailable for pick up
Ajax
Manufacturer:EMERSON
Manufacturer #:IC694ALG233
Description
PACSystems RX3i analog input module for control processes such as flow, temperature and pressure. It requires high density terminal block.
Specifications
| Brand Name | GE | Sub Brand | PACSystems™ |
| Item Name | Input Module | Type | Analog, High Density |
| Voltage Rating | 5 - 24 VDC | Input | (16) Channel |
| Interface | PROFINET, Modbus/TCP, Ethernet Global Data (EGD), Control Memory Exchange (CMX), PROFIBUS DP | Communication Ports | Serial Communications, Modbus/RTU, Modbus/TCP, HART, GENIUS, DNP3 Serial/TCP, IEC-61850, IEC-104, Reflective Memory, PROFIBUS/Master, CANOpen |
| Dimensions | 34 mm W x 140 mm D x 145 mm H | Series/Model | RX3i Series |
| Amperage Rating | 0 - 20 mA, 4 - 20 mA | Frequency Rating | 23 Hz |
| Resolution | 16 Bit | Response Time | 6 Millisecond |
| Connection | (2) RJ45 and (2) SFP | Mounting Type | DIN-Rail, On Panel |
| Degree of Protection | IP20 | Temperature Rating | 0 - 60 °C |
| For Use With | PACSystems RX3i Control Systems | Standards | ATEX Zone 1, CE Certified, UL HazLoc C1D2, UL Listed |
| Application | Complex Machine, General Automation, Motion Control and Process Control Applications |
