emrep-5112

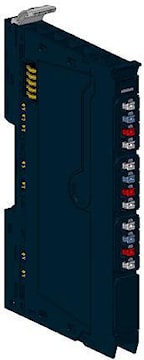

EMERSON EP-5112 2-Channel High Speed Counter 20.4 - 28.8 V,
emrep-5112
EMERSON EP-5112 2-Channel High Speed Counter 20.4 - 28.8 V,
Inventory
Available for backorder
Unavailable for pick up
Ajax
Manufacturer:EMERSON
Manufacturer #:EP-5112
Description
The digital counter module EP-5112 can read two square-wave signals (2 channels) (for example, from an incremental encoder) with a maximum input frequency of 100 kHz. Depending on the operating mode, both 32-bit counters can count up or down independent of each other in a preset range of values. The counters can be controlled via software by setting the appropriate control word.
Specifications
| Brand Name | Emerson | Item Name | High Speed Counter |
| Type | 2-Channel | Voltage Rating | 20.4 - 28.8 V |
| Interface | RS-232, RS-485/RS-422, RSTi-EP | Amperage Rating | 3.5 mA |
| Frequency Rating | 100 kHz | Response Time | 0.01 - 1 Millisecond |
| Transfer Rate | 48 Mbps | Standards | DIN 66020, DIN 66259, EIA-RS232C, CCITT V.24/V.28 |
