emrep-4264

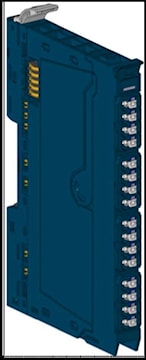

EMERSON EP-4264 AO 4CH VOL./CUR. 16 BITS W/ DIAG. 2 3 OR 4W
emrep-4264
EMERSON EP-4264 AO 4CH VOL./CUR. 16 BITS W/ DIAG. 2 3 OR 4W
Inventory
Available for delivery
Unavailable for pick up
Ajax
Manufacturer:EMERSON
Manufacturer #:EP-4264
Description
GE provides RSTi-EP analog output modules with up to 4 analog outputs at +/-10 V, +/-5 V, 0-10 V, 0-5 V, 2-10 V, 1-5 V, 0-20 mA or 4-20 mA. The resolution is 16 bit per channel. An output can be connected to each connector, the internal switching is carried out automatically. The output range is defined using parameterization. A status LED is assigned to each channel. The outputs are supplied with power from the output current path (IOUT).
Specifications
| Brand Name | GE | Item Name | Output Module |
| Type | High Density, High Performance, 2, 3 or 4-Wire, Analog | Voltage Rating | 20.4 - 28.8 V Input, 2 - 10 V Output |
| Output | (4) Channel | Communication Ports | PROFINET RT, PROFIBUS, Modbus/TCP and EtherCAT |
| Dimensions | 0.45 in W x 2.99 in D x 4.72 in H | Series/Model | RSTi EP Series |
| Amperage Rating | 0 - 20 mA, 4 - 20 mA | Resolution | 16 Bit |
| Response Time | 1 Millisecond | Transfer Rate | 48 Mbps |
| Connection | RJ45 Copper | Mounting Type | DIN-Rail |
| Degree of Protection | IP20 | Temperature Rating | -20 to 60 °C |
| Environmental Conditions | 5 - 95% Non-Condensing Air Humidity, -40 to 85 °C Storage | For Use With | RSTi EP Network Adapter |
| Standards | ATEX Zone 2, Category 4, CE Certified, PLe), SIL 3 Compliant (IEC 62061 and EN ISO 13849-1, TUV SIL3, UL HazLoc Class 1 Division 2, UL Listed | Application | For installation, machine commissioning and service applications |
